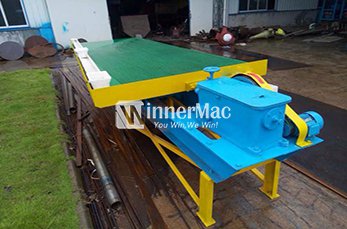

Shaking Table

shaking table is mineral processing equipment used for sorting fine material. with development of technoledge, our company have invented the doulbe laryer shaking tabke , triple layer shaking table ,and four layer shaking table, which maximumed saving space for footprint, large capacity and relatively low cost, energy saving, high separation efficiency, easy to adjust, etc.

We're here to help:

Easy ways to get the answers you need.

0086 18637192252

sales@hiimac.com

0086 18637192252

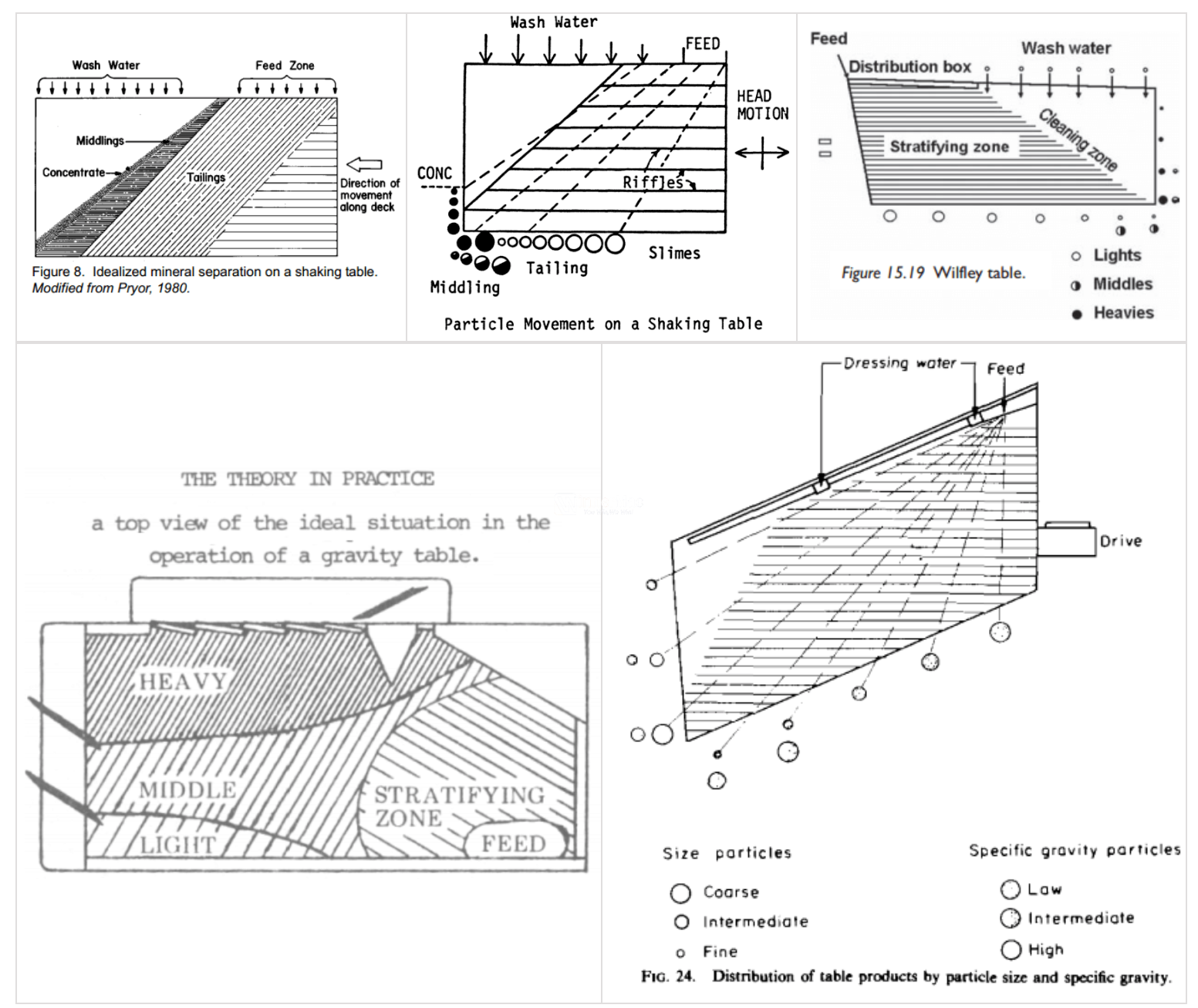

The working principle of shaking table(table concentrator) is to use the combined action of the specific gravity for different sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning.
1. Transmission
The transmission is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil pump.
2. Decks
The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom and are easy to clean, not have common maintenance. The fiberglass decks have characteristic of water-resistance and corrosion-resistance.
3. Feed box and water box
A wooden feeding box with hooper ball mill and long water box are attached to the iron of deck, to make feeding evenly.

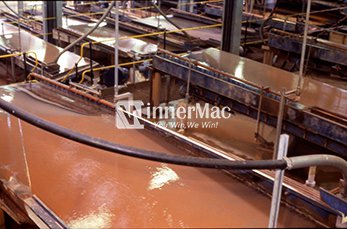

Nowadays, Shakinig Table more often to be used in Gold ore processing,due to it plays the essential role of classifing and used as heavy gold concentrating devices. Apart from nuggets; generally the valuable heavy minerals /metals like platinum and palladium that can be recovered by tables and sluices, On a gold sluice, large particles (gravel) travel by sliding and rolling over the riffles, with finer particles travelling by saltation. Sand travels by a combination of modes described earlier with some saltation over the riffles. Very fine particles are maintained in suspension by turbulent and inter-particle collision.
