Desulfurization gypsum rotary dryer
Desulfurization gypsum rotary dryer
Our company is the first company in China to adopt three-layer rotary drum to dry desulfurization gypsum. This equipment saves energy by one-third compared with the traditional rotary tumble dryer, which greatly reduces the production cost. The equipment is suitable for the drying of materials such as gypsum and fly ash.
Desulfurization gypsum exercise process: The main application of desulfurization gypsum is to use it as a retarder for cement, or to form hemihydrate gypsum for the manufacture of gypsum board, gypsum block and plaster. Building gypsum processing can be divided into direct method and indirect method according to different heat transfer methods:
1. Indirect method (two steps of drying and calcining): The two-step method of drying and calcining is based on the energy situation and environmental protection requirements of the power plant, and the free water that is easy to escape and the crystal water that is difficult to escape are placed in two equipments. It is more reasonable and also facilitates product structure adjustment and quality control. The device can produce dry dihydrate gypsum (for cement retarder) and super superior product beta gypsum.
2. Direct method (one-step method of drying and calcining): One-step drying and calcining method is a set of gypsum calcination process equipment designed and developed by using three-layer drum drying technology with extremely high heat and mass transfer efficiency. The process device can produce dry dihydrate gypsum (for cement retarder), and can also produce hemihydrate gypsum. The wind temperature for producing dry dihydrate gypsum is only 120 ° C, and the low temperature flue gas of the thermal power plant can be fully utilized.

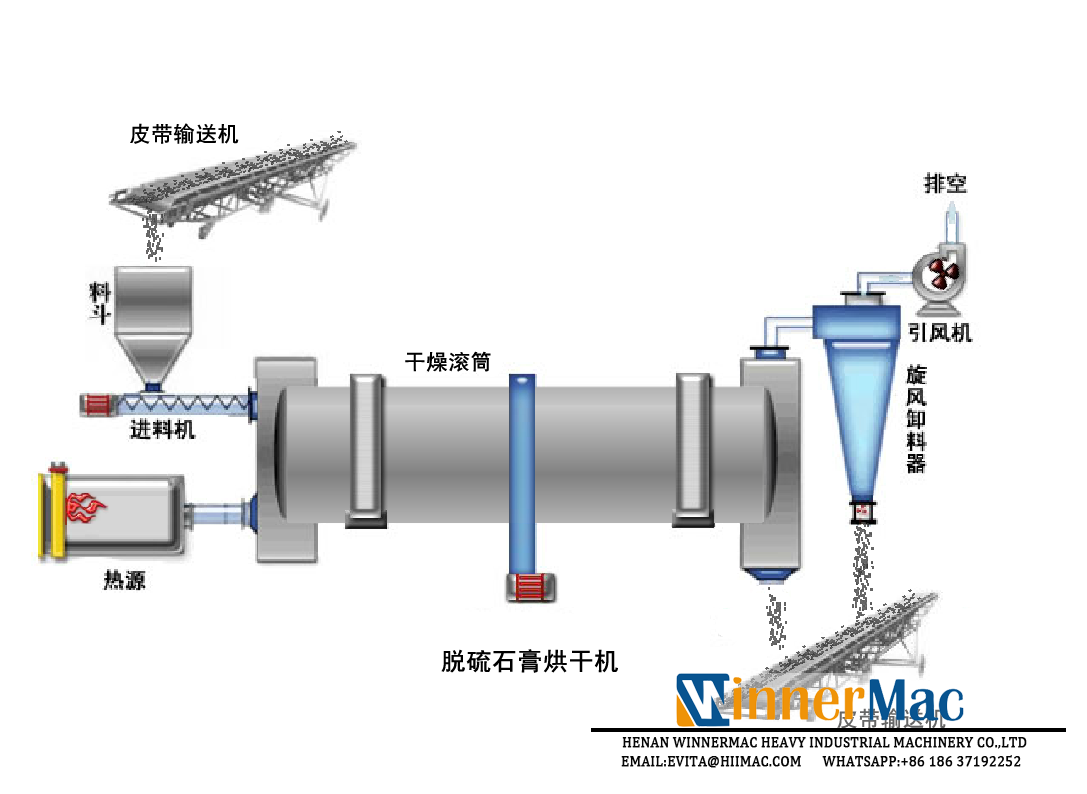

The desulfurization gypsum enters the dryer drum from the feeding device to achieve downstream drying. The desulfurization gypsum is continuously copied and scattered under the inner layer of the copying plate to realize heat exchange in the spiral traveling mode, and the material is continuously in the middle layer. The ground is repeatedly advanced, and it is carried out in a two-step step. The material in the middle layer not only absorbs the heat emitted by the inner roller, but also absorbs the heat of the middle roller, and at the same time prolongs the drying time, and the material is optimally dried here. status. The material that achieves the drying effect quickly travels out of the drum under the action of hot air. The wet material that has not reached the drying effect cannot travel quickly due to its own weight, and the material is sufficiently dried in the rectangular copy board to thereby achieve the drying effect and complete the drying process.
Desulfurization gypsum rotary dryer Features:
1, The gypsum fixed-speed and quantitative feeder solves the problems of feed and dryer homogeneity, fixed the problem of intermittent feeding, material blocking, and large instantaneous amount of materials. It is a prerequisite for improving the evaporation intensity.
1)Uniquely design of buffer silo and feeding mechanism overcame the intermittent feeding and flickering problems caused by uneven feeding;
2)In the front end of the dryer,we add a large tilt angle non-powered screw propeller, not only uniformly send material into the drying section of the feed gypsum, but also to further cut large pieces of plaster to disperse;
2, Optimizing the internal structure of the dryer maximized the heat exchange area between the material and the hot air is the basis for improving the evaporation intensity.
1)Continuously optimize the internal structure of the drum and the design of the lifting plate. The final shape is the unique drum internal lift plate structure and the mixing zone layout with different functions. The drum full section "material curtain" has no dead corner, no gaps, and maximum Limit the increase of the area of heat exchange between the gypsum and the hot air, so that the moisture in the gypsum will rapidly increase in temperature, vaporize and evaporate, and will be taken away by hot air;
2)Patented layered Desulfurization gypsum rotary dryer . According to the law of different size of particles in inside of the roller the speed of heating is way different, set up a multi-component drying device, put small size, control of small particles of material due to excessive drying and chalking, large particles of heat inside and outside the material is not uniform dryness, we need to ensure dry uniformity.
3, The hot air furnace is rationally selected to optimize its internal structural design and masonry quality, reduce the air leakage rate, reduce the oxygen content in the hot air to less than 5%, and the temperature of any process requiring 700-1100°C can be arbitrarily controlled and used as a dryer. Providing a homogeneous and stable heat source is a reliable guarantee for the high-strength operation of the gypsum dryer.
4, The measurement and control technology system adopts a computer operation platform and frequency conversion PLC control technology, online interlocking control of temperature, pressure, oxygen concentration, device speed and other process parameters, to achieve automatic detection and control of the entire system, with centralized, on-site switching function, guarantee The system operates with maximum output, optimal quality, most energy-saving mode, and safe explosion-proof operation.
5, Optimize the configuration of gravity settlement + cyclone dust collector + wet / bag three dust collector, dust concentration <30-50mg/Nm3, to ensure that the exhaust emissions standards.
6, The first modular design, manufacturing, transportation, installation, service concept and assembly test platform, to optimize the design and manufacturing, more convenient transportation and installation services to return customers, to ensure maximum customer benefits.
7, Solve the problem that the water vapor returns to the material after the system temperature decreases during the same direction movement caused by the dehumidification of the conventional dryer, and increase the drying efficiency to achieve the purpose of deep dewatering.
8, The dryer adopts the double sealing mode of fish scales or mazes and expandable graphite packing mechanical seals to ensure that the dryer system is closed and oxygen-tight and safe to operate.
